WinCE Computer
GK-7000
GK-7000
7" (17,8cm) Industrial Control Device with WinCE 5.0

GK-7000

Functions:

Application: Service terminals in hotel, hospital and stores, industrial machines maintains monitoring, Video conferencing systems & Dinner ordering systems, etc.

Parameters:

7" (17,8cm) wide color TFT display
800 x 480 resolutions, 260K colors
Four wire resistive touch panel

Samsung S3C2416, 400MHz processor
2GB FLASH, 128MB SDRAM
OS : Windows CE 5.0
EVC & .Net Framework 3.5

10/100M Ethernet supports
USB1.1 x3 Mini USB 2.0×1 (active sync)
RS232 x1 / RS485 x 1  or  RS232 x 2
SD card supports up to 4G (internal & external)
Speaker with Audio output
Keyboard or Mouse supports

Power input DC 9-12V
Power consumption 8W
Size(WDH) : 200 x 151 x 50mm
Weight : 516g/610g(with battery)

Accessories:

Touch Pen: 1 Piece
Driver Disk: 1 Piece
Operation Manual: 1 Piece

Optional:

802.11 b/g Wi-Fi (built-in)
Bluetooth (built-in)
2000mA battery (built-in)
DC  adapter

PC-855
PC-855
8" (20,3cm) Embedded All In One PC with WinCE OS

PC-855

Functions:

Powerful CPU
High resolution screen
4-wire resistive touch panel
Multi-function applications

Application: Advertising device in headrest of taxi, Service terminals in hotel, hospital and stores, industrial machines maintains monitoring, Video conferencing systems & Dinner ordering systems, etc

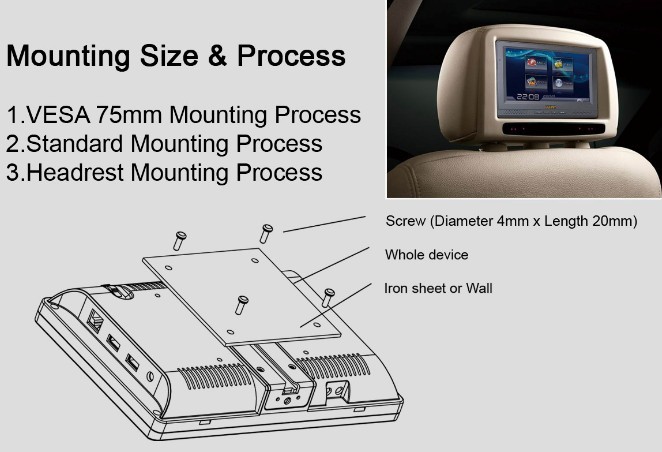

PC-855 mounting

Parameters:

8" (20,3cm) wide color TFT display
800 x 480 resolutions, 260K colors
4-wire resistive touch panel

MIPS 32bit 500MHz processor (AMD1250)
64MB NAND Flash, 256MB DDR2 667MHz
OS : Windows CE 5.0
EVC & .Net Framework 3.5
High-speed multiply-accumulate (MAC)
Support MPEG 1, 2, 4 and WMV9, (720×480)

LAN: Ethernet 10/100M (RJ45)
USB 2.0×3, USB OTG×1
RS232×2
SD card supports up to 16G
Keyboard or Mouse supports
Ear phone slot ×1
Speaker (front)×2
Mic (front)×1

Power input: DC 9-12V
Power consumption: 10W
Size(WDH): 215×146.5×37.5mm
Weight: 666g

Optional:

Headrest
AV in
LVDS output interface
802.11 b/g Wi-Fi (built-in)
GPS (P/S2) (external serial port)
Bluetooth (built-in)

Special customized:
Support IDE Hard Disk
Support RFID Mould by SPI interface
Support output by VGA
Support battery
Support CF card

Accessories:

P/S2 to RS232: 1 Piece
DC adapter: 1 Piece
CD drive: 1 Piece
Bracket: 1 Piece
